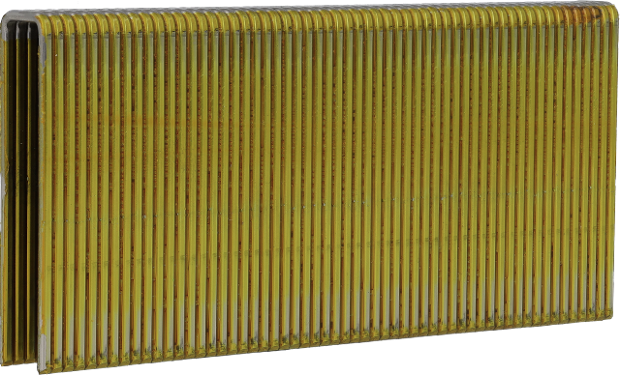

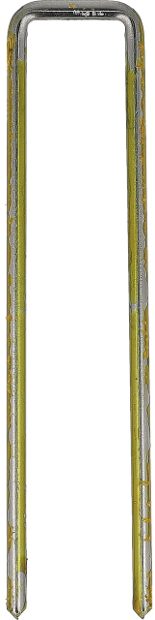

Q Klammer 63mm ETA

Anklicken des Bildes zum Zoomen

Beschreibung

Q Klammer, AISI304, Sencotiert ETA

Mehr anzeigen Weniger anzeigen

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: Q25BGB-ETA
GTIN: 8715274240350

Technische Spezifikationen

Streifenwinkel: 0 °
Legierungstyp: Verleimt
Drahtmaterial: Nichtrostender Stahl, AISA 304
Drahtstärke: 15

Spezifikationen für Befestiger

Beschichtung: Sencot
Anwendung: Außenbereich
Spitzenart: Meißelspitze
Spitzenwinkel: 70 °
Klammertyp: Schwere Drahtklammer
Klammerstärke: 1.7 mm
Klammerdrahtstärke: 1.78 mm
Klammerrückenbreite Nennmaß: 11.1 mm
Klammerrückenbreite Innenmaß: 7.67 mm
Klammerserie: Q-Klammer
Menge Befestiger je Streifen / Coil: 56 - 58
Klammerlänge: 63.0 mm

CE-Spezifikationen

CE-Befestiger-Typ: Klammer mit kreisförmigen Querschnitt
DOP No: DOP# SSETA-8120
Beschichtungslänge: 63.0 mm
Charakteristische Zugspannung: 900.0 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 2500

Logistische Spezifikationen

Nettogewicht: 13.62 kg

Verbundene Werkzeuge

Downloads

Q25BGB-ETA_de_CommercialProductSheet_1.8_1752257577171 PDF 1 Mb
DOP SSETA-8120 PDF 637 Kb
