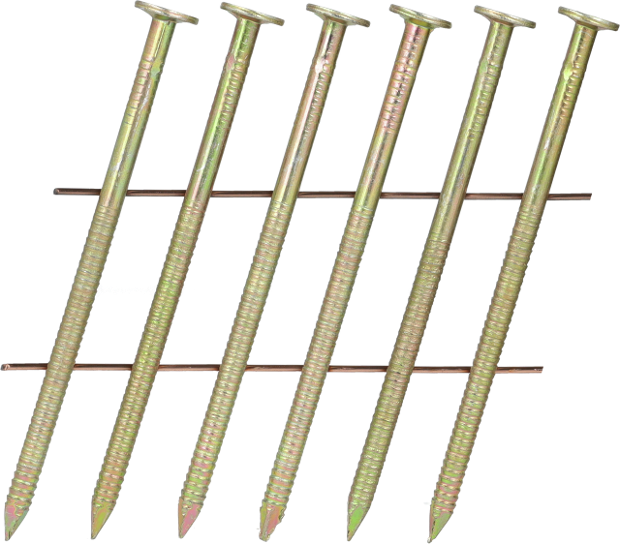

BL Coilnagel ring 2,5x55mm

Anklicken des Bildes zum Zoomen

Beschreibung

2,5mm Coilnagel, Flachkopf, Ringschaft, verzinkt, sencotiert

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: BL22AABF
GTIN: 8715274025193

Technische Spezifikationen

Streifenwinkel: 16 °
Wicklung Typ: Flach
Legierungstyp: Drahtcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit

Spezifikationen für Befestiger

Oberfläche: Normal verzinkt
Beschichtung: Sencot
Anwendung: Innenbereich
Nageltyp: Coilnägel
Nagelschaft Typ: Ring-Schaft
Spitzenart: Diamant
Spitzenwinkel: 36 °
Steigung min.: 8.4 mm
Steigung max.: 8.4 mm
Max. Außendurchmesser Coilnagel: 122 mm
Nagelschaft Nageldurchmesser: 2.5 mm
Menge Befestiger je Streifen / Coil: 275 - 275
Nagelschaft Nagellänge: 55.0 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 25.5 N/mm²
CE-Befestiger-Typ: Ringnagel mit rundem Querschnitt
DOP No: BL22AABF
Korrosionsschutz in Micron: ≤5
Nutzungsklasse: 1
Oberflächenart: Beschichtung Typ 3
Beschichtungslänge: 40.5 mm
Kopf-Querschnittsfläche: 27.0 mm
Gewindelänge: 40.0 mm
Charakteristisches Fließmoment: 1620.0 Nmm
Charakteristische Zugspannung: 700.0 N/mm²
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 9.1 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 7425

Logistische Spezifikationen

Nettogewicht: 17.1 kg

Verbundene Werkzeuge

Downloads

BL22AABF_de_CommercialProductSheet_1.8_1752224518727 PDF 1 Mb
DOP VS-CPR-201305-S005 PDF 131 Kb
BL22AABF_de_DeclarationOfPerformanceDoP_1.0eu_1748451924042 PDF 63 Kb
