SidingPro40 D-Kopf Streifennagler
- Artikelnummer
- 2Y2001N
- Smooth shank nail length
- 35 - 60 mm
- Smooth shank nail diameter
- 2,3 - 2,3 mm
- Collation angle
- 34 °
- Serie
- Pro

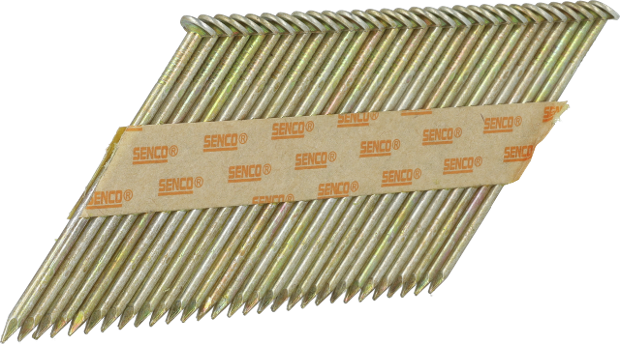

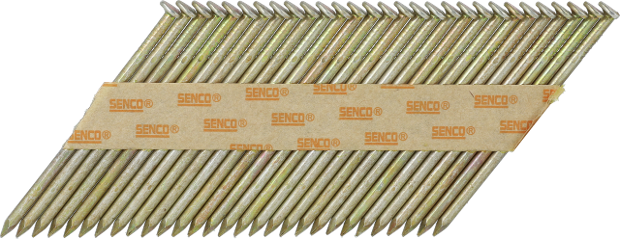

2,3mm Streifennagel, Glattschaft, verzinkt, sencotiert
Anklicken des Bildes zum Zoomen
Beschreibung
2,3mm Streifennagel, Glattschaft, verzinkt, sencotiert
- Harmonized standard EN 14592:2008+A1:2012
Spezifikationen
Identifizierung
- Article number
- EC49AABKR
- GTIN
- 8715274043678
Technische Spezifikationen
- Collation angle
- 34 °
- Collation type
- Paper collated
- Wire material
- Carbon steel standard tensile
Spezifikationen für Befestiger
- Finish
- Regular galvanised
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- CH stripnails
- Nail head type
- Clipped head
- Nail shank type
- Smooth shank
- Point type
- Diamond
- Pointangle
- 36 °
- Nail diameter
- 2.3 mm
- Amount fasteners on strip/coil
- 34 - 35
- Nail length
- 45.0 mm
CE-Spezifikationen
- Characteristic head pull through parameter
- 22.45 N/mm²
- CE fastener type
- Round cross-section plain shank nail
- DOP No
- EC49AABKR
- Protection level in micron
- ≤5
- Service class
- 1
- Coating type
- Coating type 3
- Coating length
- 29.0 mm
- Head cross sectional area
- 24.0 mm
- Characteristic yield moment
- 1575.0 Nmm
- Characteristic tensile strength
- 629.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 7.18 N/mm²
Nicht-technische Spezifikationen
- Package quantity
- 2000
Logistische Spezifikationen
- Net weight
- 3.0 kg
